Sleek Design

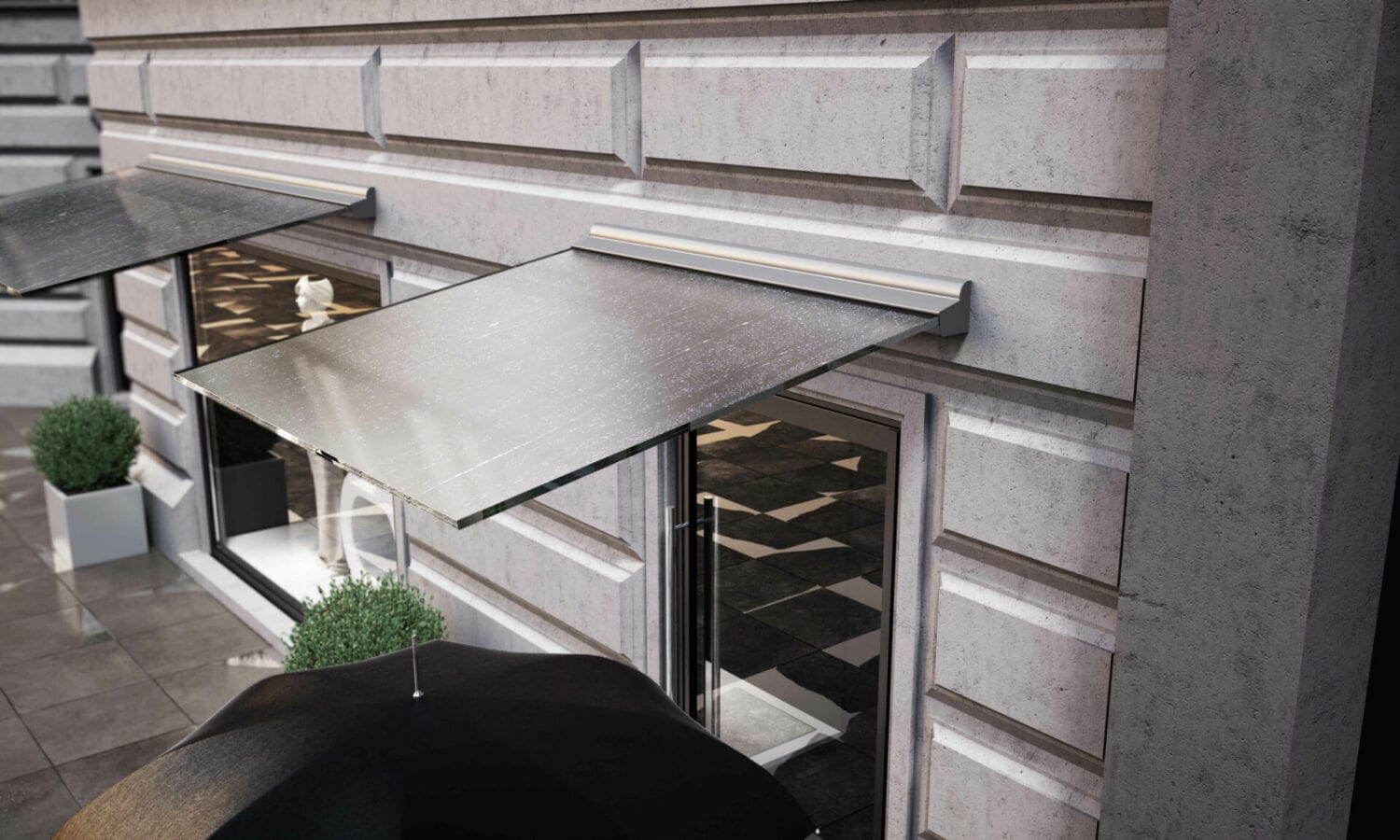

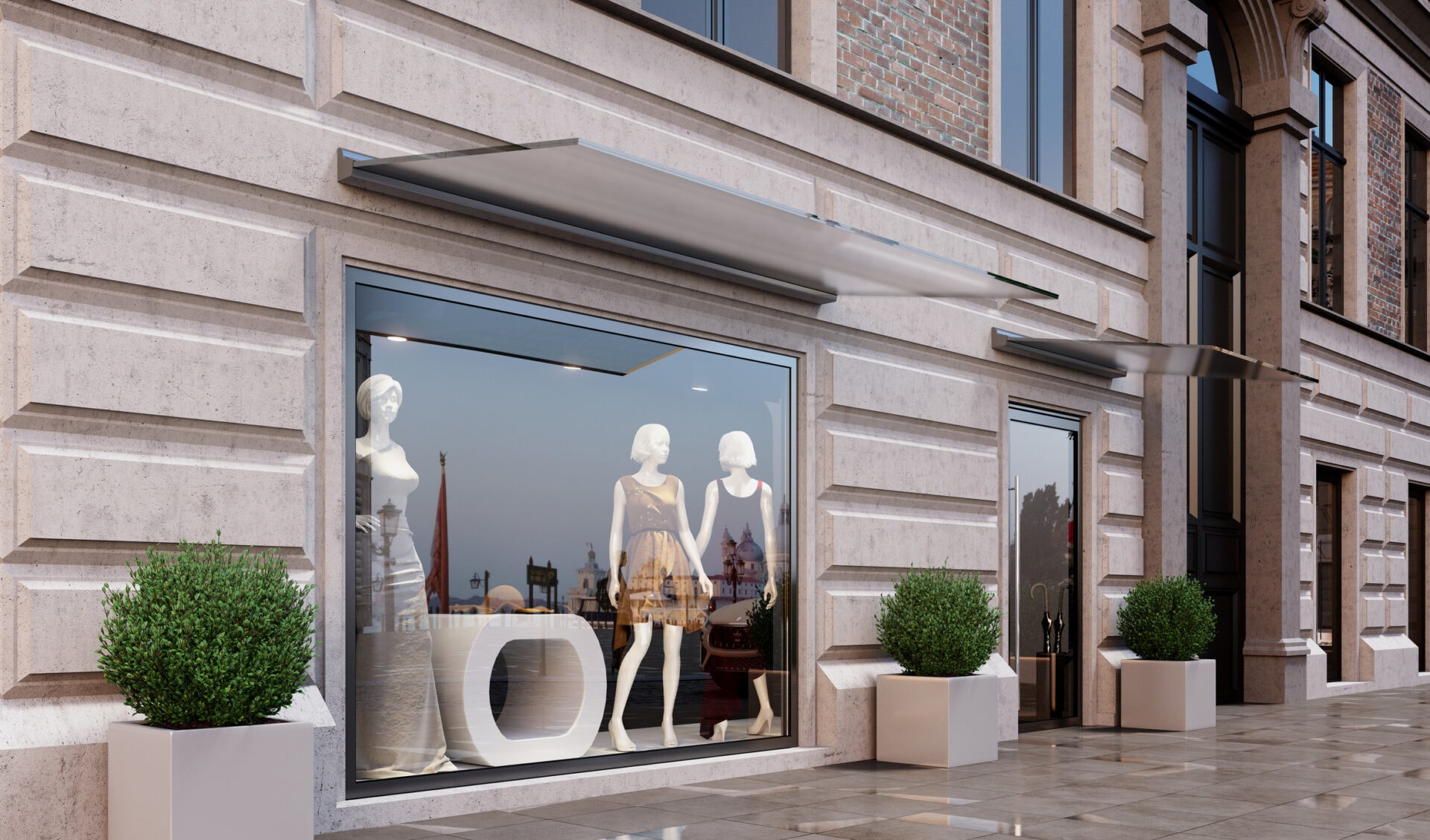

Our glass canopy is a unique system designed with a minimalist aesthetic but suitable for harsh locations. This canopy can create a stylish feature above an entrance door, a side or rear French door or even a shop front with a large glass panel that effectively looks like its floating. We over three wall plate solutions all of which combine practical rain protection while adding a distinctive architectural feature to the surrounding space.
Key Features
- Effective rain protection and uninterrupted natural light.
- Minimalist aesthetics thanks to the self-supporting canopy design (no frame or struts).
- Robust design that allows for large dimensions with a maximum projection of up to 1.5 meters.
- Three different wall plates designed for various projections and glass thicknesses to suit multiple locations.
- Possibility of incorporating lighting features and decorative glass panels into the canopy system.
TECHNICAL SPECIFICATIONS
The maximum width of the canopy system is 2.5metres. The maximum projection depends on the snow load requirements in the site location which our team will calculate but 1metre projection can be achieved with two sheets of 6mm or 8mm laminated glass. An increased projection of 1.2metres can be achieved with two sheets of 8mm thick glass subject to location and a maximum projection of 1.5metres is available with two sheets of 10mm thick toughened or laminated glass.
